Rugged construction and designed for satisfactory operation under wide voltage fluctuations. Standard Three Phase Motors are available with rated output from 0. 25 hp/0. 18kw upto 10 hp/75kw.These motors meet the requirement of iec 60034 and 60072. They can be provided with thermistors/thermal cutouts embedded in the windings, if required. Dynamically balanced pressure die-cast rotors. Stator stacks are pre-wound and fitted in cast iron/ aluminum frames.

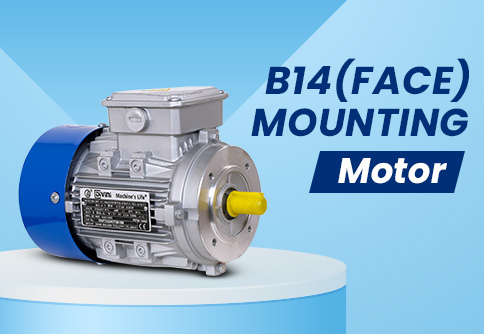

Face Mounted Motor

PRODUCT SPECIFICATIONS

  • Mounting dimensions as per iec 72, is 2223 with ‘c’ type flange.Varnishing done through vacuum pressure impregnation (vpi),Tropicalized winding.
  • Connections are made by electric brazing to eliminate loose contacts.Bearings are shrunk fit on bearing seats which are ground to close tolerance.
  • Dual voltage / dual speed can be provided, Motor for operation at 60 hz on request.
  • Meets eff2 requirement of is 12615,Eff 1 can be supplied on request.

APPLICATION

  • Blower Machine
  • Cranes and Hoists
  • Machine Tools
  • Material Handling Equipment
  • Textile Machinery
  • Printing Machine
  • Air Conditioning Machine
  • Air Cooler

H.P : 10 H.P
Volts ; 415, 220
Phase : 3
RPM : 1440, 960
Insulation : B.E.F.
Duty : S1
Enclose : TEFC
Protection : IP 55
