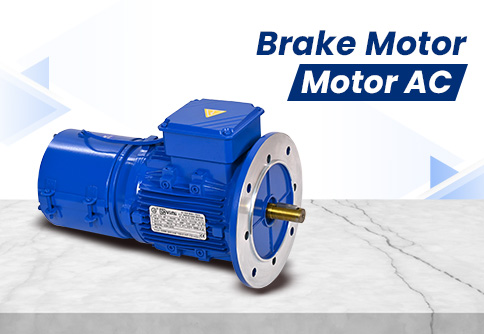

AC Brake Motor

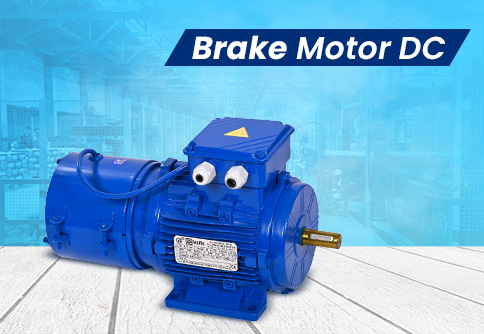

DC Brake Motor

Three Phase Brake Motor

Brake Type

  • Fail Safe Brake  (Power off shaft lock)

Range of Production

  • Three Phase Brake Motor
  • 0.50 HP to 20.0 HP (0.37 KW to 15 KW) Frame 71 to 160 on 2,4,6 Pole.


Brake Motor are supplied in  aluminum body up to 90L frame and also supplied in robust, rugged cast iron body.


Motor supply with class “F” insulation as standard features.


  • High Efficient
  • Vibrating Free
  • Noise Free
  • Low Running Cost
  • Durable
  • Smooth Finishing
  • Cost Effective


  • Continues Duty Brake Motor (S1)
  • Short time D Duty (S2)
  • Intermittent Periodic Duty (S3)
  • Intermittent duty with starting duty (S4)
  • Intermittent duty with starting & ele Braking (S5)

Voltage and Frequency

Three phase Brake Motor supply volts 415 + 5% Hz + 3% customer request we are also able supply motor in 220, 380 and 460 Volts On Hz 50 or 60 Also.

Shaft & Rotor

Rotor is positive locking with Shaft key joint so that cannot move on high full load  Torque Shaft are made by EN-8 or EN-9 material. Rotor are of high pressure E.C. grad aluminum die-cast. Every Rotor is dynamically balanced. It makes motor low complitudes of vibration & noise.

Bearing & Lubrication

Bearing are adequately lubrication with lithium based high temp. up to 150 deg. All the motor are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.

Mounting Type

  • Foot (B3)
  • Flange (B5)
  • Face (B14)
  • Foot With Flange (B35)
  • Foot With Face (B34)


Brake Motor is especially suitable to used with lifting machinery, textile machinery, greased motor, Cable Reeling Drums, Rolling Mills, Machine Tool etc.
